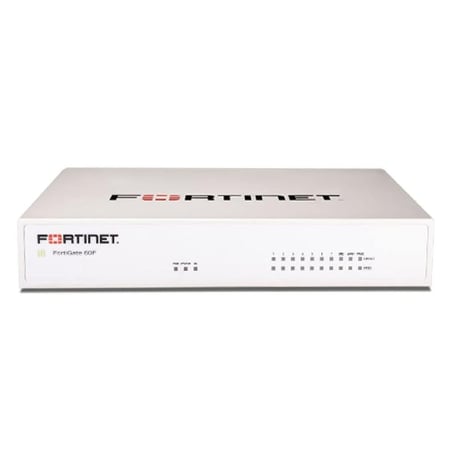

FortiGate-60F 10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1x DMZ Port)
Hardware Specifications
GE RJ45 WAN / DMZ Ports : 2 / 1
GE RJ45 Internal Ports : 5
GE RJ45 FortiLink Ports (Default) : 2
USB Ports : 1
Console (RJ45) : 1
System Performance — Enterprise Traffic Mix
IPS Throughput 2 : 1.4 Gbps
NGFW Throughput 2, 4 : 1 Gbps
Threat Protection Throughput 2, 5 : 700 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 10/10/6 Gbps
Firewall Latency (64 byte UDP packets) : 3.3 μs
Firewall Throughput (Packets Per Second) : 9 Mpps
Concurrent Sessions (TCP) : 700,000
New Sessions/Second (TCP) : 35,000
Firewall Policies : 5,000
IPsec VPN Throughput (512 byte) 1 : 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 200
Client-to-Gateway IPsec VPN Tunnels : 500
SSL-VPN Throughput : 900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
SSL Inspection Throughput (IPS, avg. HTTPS) 3 : 630 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 : 400
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 : 55,000
Application Control Throughput (HTTP 64K) 2 : 1.8 Gbps
CAPWAP Throughput (HTTP 64K) : 8 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 16
Maximum Number of FortiAPs (Total / Tunnel Mode) : 64 / 32
Maximum Number of FortiTokens : 500
High Availability Configurations : Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) : 1.5 x 8.5 x 6.3
Height x Width x Length (mm) : 38.5 x 216 x 160 mm
Weight : (1.01 kg)
Form Factor : Desktop
Operating Environment and Certifications
Power Rating : 12Vdc, 3A
Power Required : Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz
Maximum Current : 100Vac/1.0A, 240Vac/0.6A
Power Consumption (Average / Maximum) : 17.0 W / 18.5 W
Heat Dissipation : 63.1 BTU/hr
Operating Temperature :-32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity Humidity : 10–90% non-condensing
Noise Level : Fanless 0 dBA
Operating Altitude : Up to 7,400 ft (2,250 m)
Compliance : FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications : ICSA Labs : Firewall, IPsec, IPS, Antivirus, SSL-VP
