Key button operation instructions

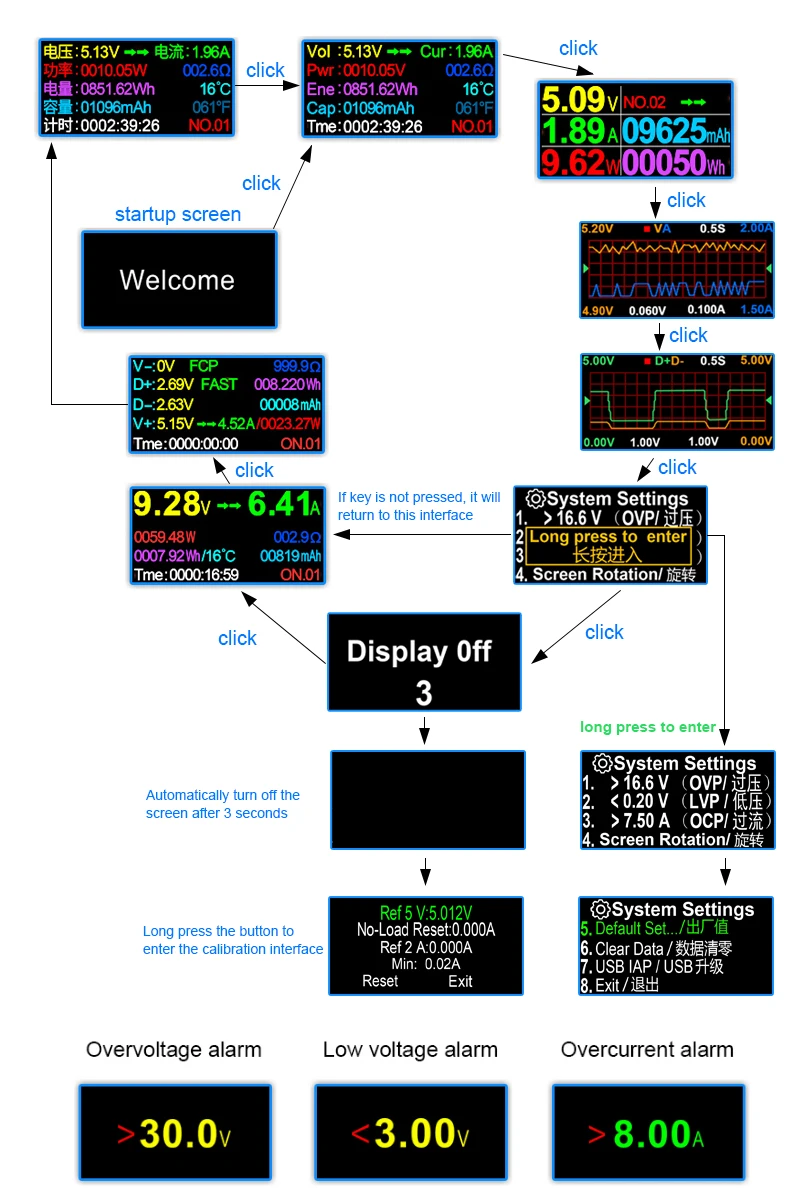

1) Short press of the button is to switch the screen function
2) Quickly double-click the capacity to reset to zero (mAh)
3) Quick three-click battery reset and reset (Wh)
4) Four quick clicks are timing reset to clear the current group (00:00:00)
5) Quick five clicks are to change the cumulative data storage group number (NO.X)
6) Press and hold the button to reset the capacity, power, and time to reset the current group.
(mAh, Wh, 00:00:00)
7) When short press on the System Settings setting interface, long press the button to enter the setting, and then short press to switch the setting column, and then long press in a certain column to execute the column, when the number of the execution column jumps and flashes, double-click is an addend. Adjust, click is subtraction adjustment, long press during addition or subtraction adjustment is continuous addition or continuous subtraction, after adjusting for a while, the word OK will be displayed and the system will automatically save the value, and continue to wait for a while to automatically exit the setting interface
7.1 >32.0V (OVP/Overvoltage Protection)
7.2 <0.00V (LVP/Low Voltage Protection)
7.3 >8.00A (OPC/Overcurrent Protection)
7.4 Scrren Rotation
7.5 Default Setting
7.6 Clear Data
7.6 USB IAP/USB upgrade
7.7 Exit
8) When short press to the curve interface, long press the button to switch the refresh curve update speed 0.5S 1S 2S 5S several gears, and double-click the button quickly to stop and continue

Specification:

Voltage measuring range : 3.6V~32.0V Resolution Precision : 0.01V
Current measuring range : 0.00~5.10A Resolution Precision : 0.01A Maximum test current 6.5A
Capacity cumulative range: : 0~99999mAh Resolution Precision : 0.001Ah
Power cumulative range : 0~999999mWh Resolution Precision : 0.001Wh
Power metering range : 000.00~150.00 W Resolution Precision : 0.01W
Impedance Measuring range : 1~999.9Ω Resolution Precision : 0.1Ω
Temperature Measuring Range : 0~80℃ Resolution Precision : 1℃ Maximum
Timing Measuring range : 999Hours 59Minutes 59 Seconds Resolution Precision : 1s
USB D+ Voltage Range : 0V~2.999V Resolution Precision : 0.001V
USB D- Voltage Range : 0V~2.999V Resolution Precision : 0.001V
Time to refresh : 500mS/ times
Measurement rate : 0.5 times/s
Alarm Mode : Display Hints
Product size : 61mm x 68mm x 10.8mm
Self-consumable flow : <0.02A
Working temperature : -10~+60℃
Working humidity: : 10~80(no doubt)
Pressure of work : 80~106kPa
Certificate: RoHS, CE

The engineer once again has several technical upgrades:

1)This time the green USB male connector is used, and the 1 milliohm low internal resistance sampling resistor is used, and the maximum current of 6.5A can be tested!
2) USB-C male head replacement cost of copper pin contact plug better, tighter current data more reliable.
3) increase the screen 180 degrees flip display settings function, to adapt to some chargers using inverted display as a positive display (click to “Screen rotation” interface, and then double-click the key to make it 180 degrees reverse display).
4) the optimized PD protocol is suitable for Apple's 87W charger, and both the positive and negative side can transmit the ACC pin of the PD protocol.
5) the OTG protocol of Type-C can open the OTG digital function by inserting a random embedded Android switch head in the upper left corner of Android line.
6) increase the interface settings such as overvoltage, low voltage, overcurrent, etc., and switch to the corresponding interface at the short button at the front desk, set up by adding double-click or three click setting value.
7) challenge limit by metal industry upgrade patch manganin sampling device reduces the resistance to <1mR, access after use almost does not affect the charging speed, the perfect support for HUAWEI 4.5A super fast charging current, like a data line, the more coarse the more shorter the better, faster charging
8) the built-in PD protocol can open the Type-C interface with the PD protocol's intelligent charger unloaded power output display, so as to facilitate aging and testing. (this function can be successfully opened by inserting the random Android OTG adapter head in the upper left corner of the cross U table with the Micro USB line input port).
9) the PD protocol quick charging mode measurement that supports the updated apple X mobile phone. (support iphone 8 / 8P / apple X / MacBook quick charging, 29W power, 5V3A / 9V3A / 12V2.5A / 15V2A)
10) optimize the number of transmission functions, such as power failure memory, USB data transmission, PD fast charge protocol and so on
11) Fast charge recognition covers almost all fast charge protocols, QC2.0/QC3.0/including Huawei FCP/SCP APPLE2.4A/2.1A/1A/0.5A, Android DCP/SAMSUNG AFC satisfies Huawei and various brand mobile phone users

Package includes:

1 x Color TFT Type-C PD USB Tester
